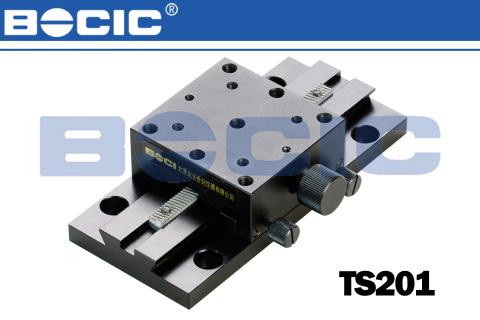

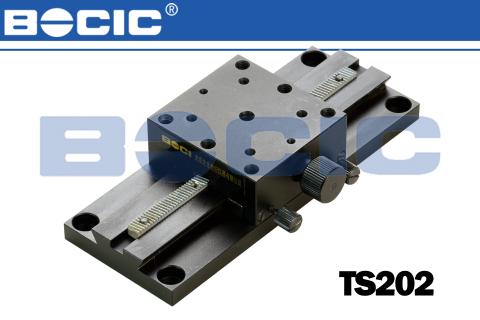

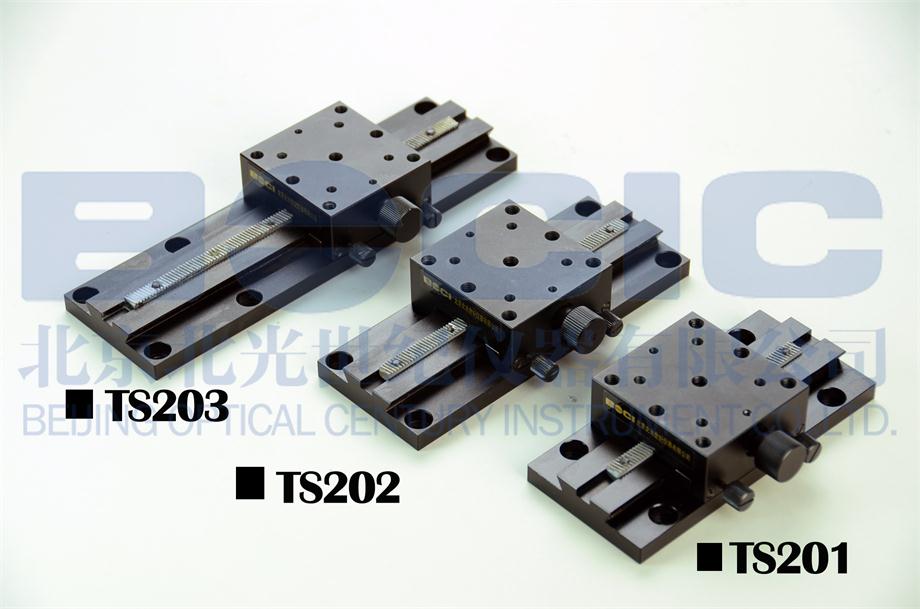

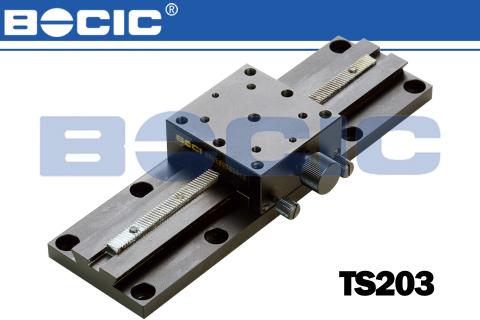

TS200 translation stages
1.Driven with dovetail slide guides and helical gear rack.
2.The motion can be easily locked withthe knobon the side of the stage.
3.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.
- description
- parameters
|

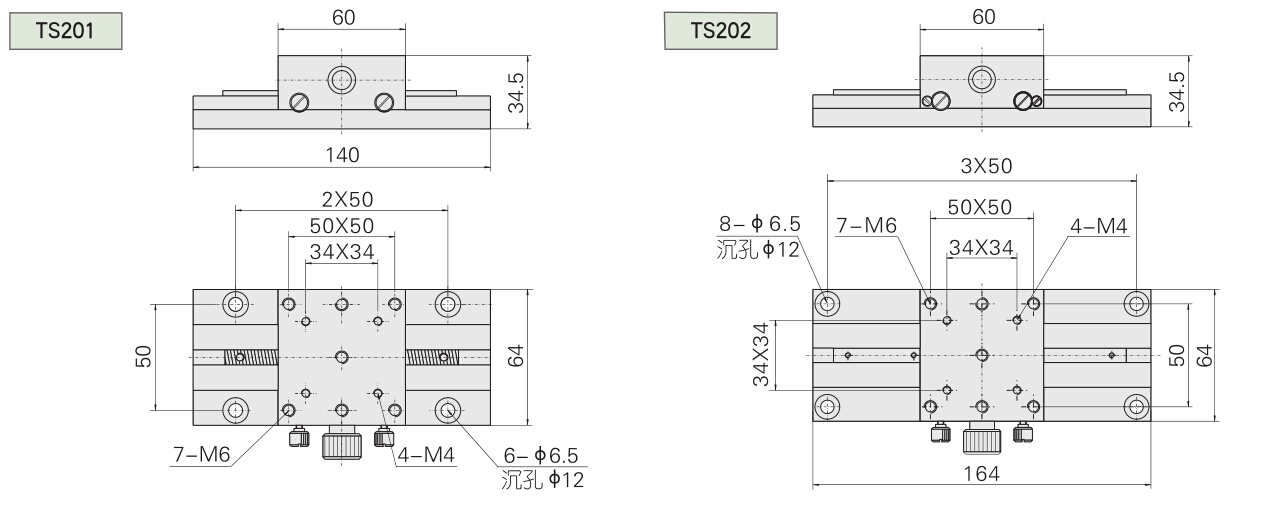

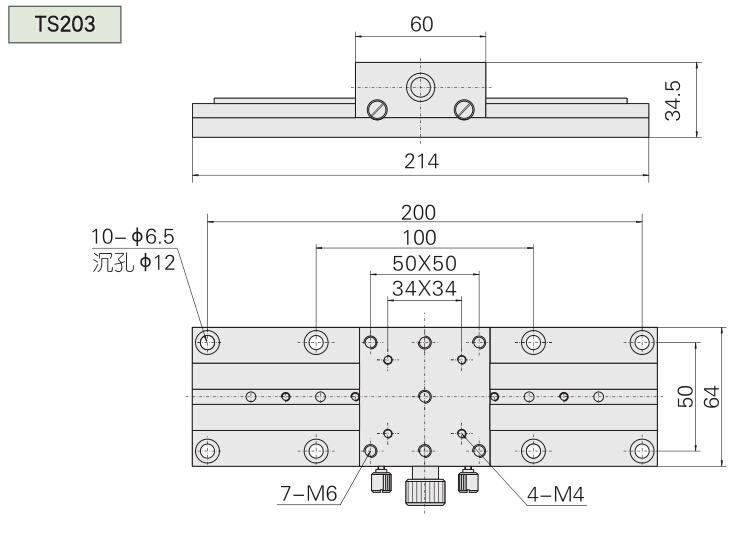

Model |
TS201 |
TS202 |
TS203 |
|
Table size （mm） |
60×64 |
60×64 |
60×64 |
|
Travel （mm） |
75 |
100 |
150 |
|
Graduation（mm） |
1 |
||
|
Resolution（mm） |
0.05 |
||
|
Precision（mm） |
0. 1 |
||
|
Loading capacity (kg) |
20 |
||
|
Weight （kg） |
0.45 |
0.5 |
0.65 |
