current location:Home>Products>Manual Positioners>Tilt Stages

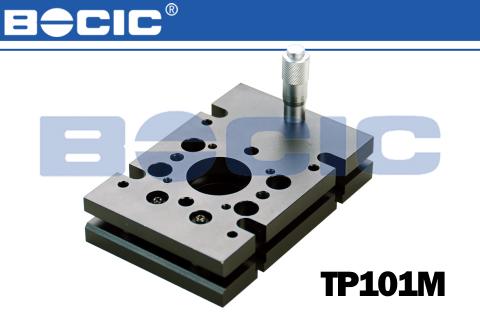

TP101M precision tilt platforms

    1.The stage provides a single-axis tilt adjustment.

    2.Driven with micrometerhead.

    3.Center aperture has a diameter of 30mm.


  • description
  • parameters

TP101M precision tilt platforms



1.The stage provides a single-axis tilt adjustment.

2.Driven with micrometerhead.

3.Center aperture has a diameter of 30mm.



Related Products


        COMBINATED STAGES

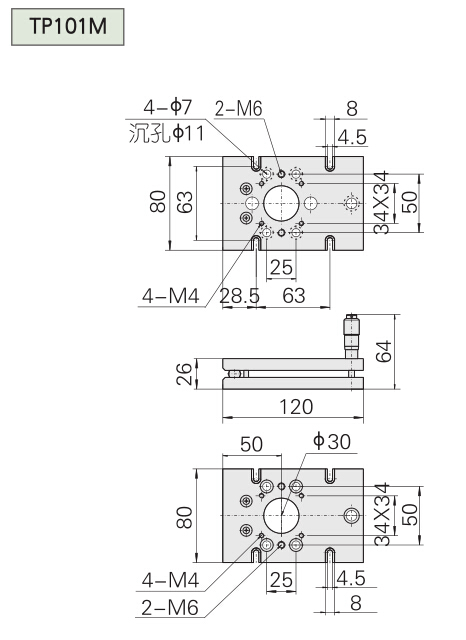

Model

TP101M

Table size mm

75×125

Adjustment range

±3o

Graduationmm

0.01

Loading capacity (kg)

5

Weight kg

0.50
