current location：Home>Products>Manual Positioners>Tilt Stages

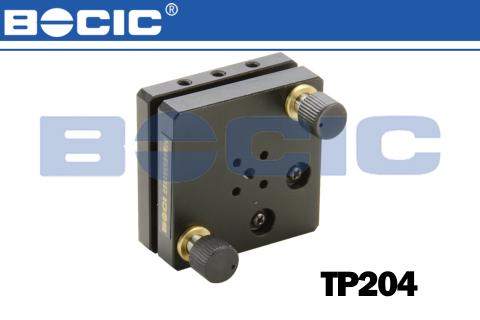

TP204M precision tilt platforms

    1.The stage provides dual-axis tilt adjustments.

    2.Driven with M6×0.25 fine thread screws.

    3.High quality disk reset spring.

    4.Standard mounting holes are located on the front and side of the stage.


  • description
  • parameters

TP204M precision tilt platforms



1.The stage provides dual-axis tilt adjustments.

2.Driven with M6×0.25 fine thread screws.

3.High quality disk reset spring.

4.Standard mounting holes are located on the front and side of the stage.



Related Products：

        COMBINATED STAGES




Model

TP204

Table size （mm）

55×55

Adjustment range

±5o

Weight （kg）

0.1
