TP205M、TP206M precision tilt platforms

    1.The stages provide two dimensional pitch and yaw adjustment.

    2.Driven with micrometerhead.

    3.High quality disk reset spring.


  • description
  • parameters

TP205M、TP206M precision tilt platforms



1.The stages provide two dimensional pitch and yaw adjustment.

2.Driven with micrometerhead.

3.High quality disk reset spring.



Related Products：

        COMBINATED STAGES

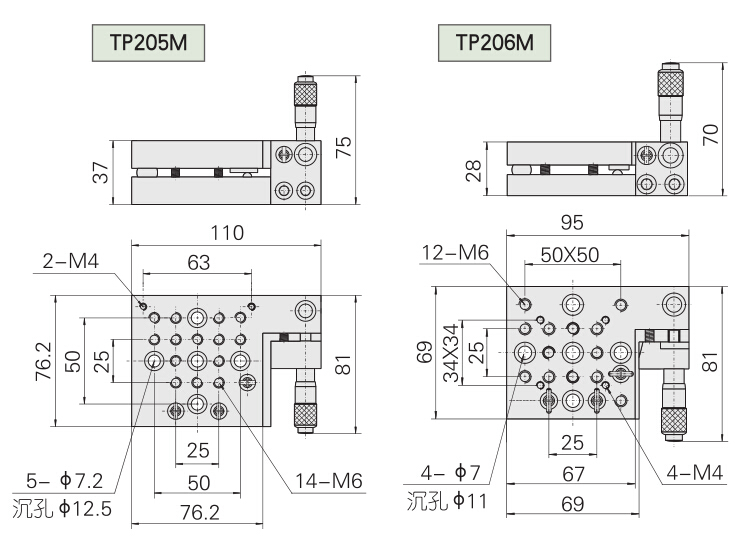

Model

TP205M

TP206M

Table size （mm）

76×76

69×69

Tilt angle

±5

±2°

Rotation angle

±2.5°

±2°

Graduation（mm）

0.01

Driving

Micrometer head

Loading capacity (kg)

8

6

Weight （kg）

0.55

0.45
