current location：Home>Products>Manual Positioners>Goniometric Cradles

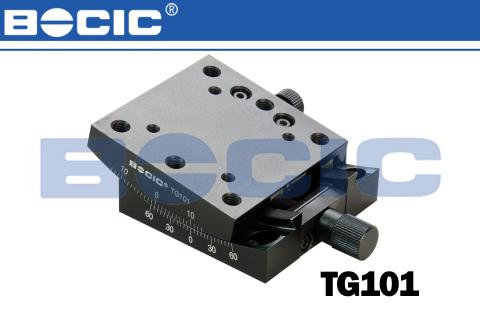

TG101 precision positioning stage

    1.High quality worm gear pair ensuresprecise and reliabletranslation.

    2.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.

  • description
  • parameters

TG101 precision positioning stage



1.High quality worm gear pair ensuresprecise and reliabletranslation.

2.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.


Related Products：

        COMBINATED STAGES

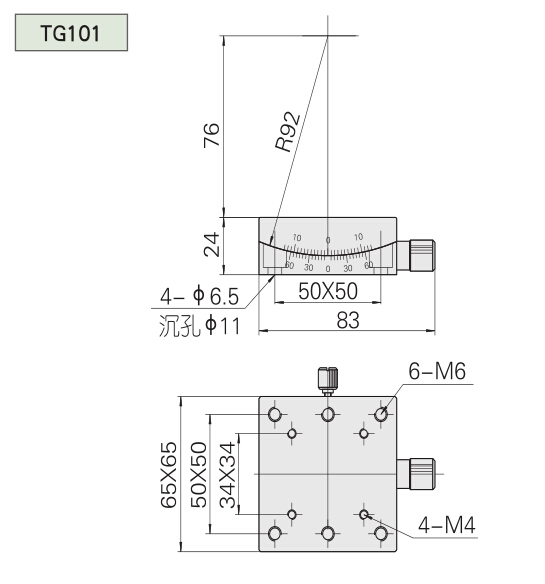

Model

TG101

Table size （mm）

65×65

Adjustment range

±10o

Minimum reading

5＇

Graduation

1o

Axis height（mm）

76

Loading capacity (kg)

6

Weight （kg）

0.6
