current location:Home>Products>Optics Mounts Series>Fiber Optomechanics

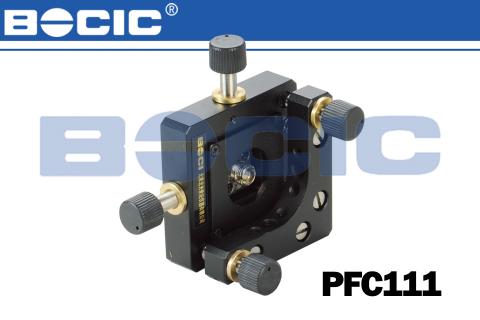

PFC111 precision fiber coupler

    1. Can provide the two translations for the fiber and two tilted adjusting ,four degrees of freedom.

    2. M6×0.25 fine thread screw driving four axis

    3. Standard FC or SMA905 interface

  • description
  • parameters

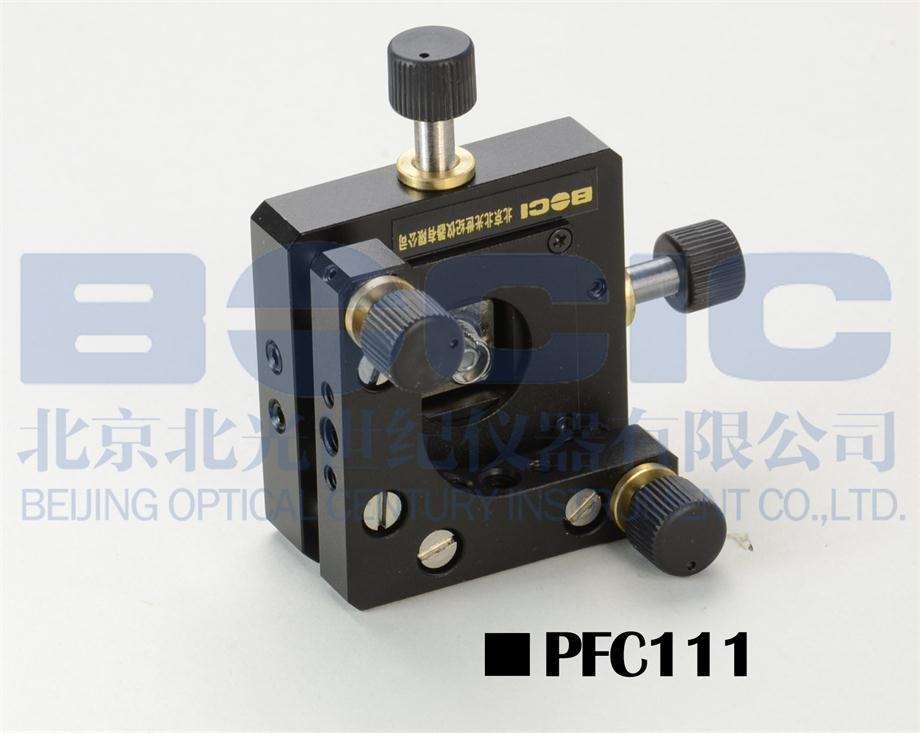

PFC111 precision fiber coupler



1. Can provide the two translations for the fiber and two tilted adjusting ,four degrees of freedom.

2. M6×0.25 fine thread screw driving four axis

3. Standard FC or SMA905 interface

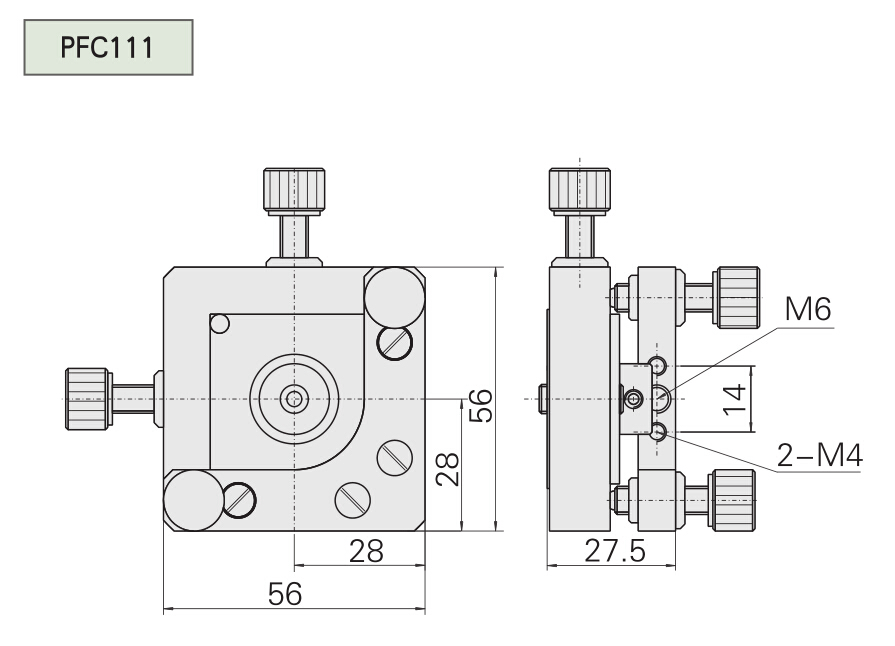

      FC interface         SMA905 interface




Model

PFC111

Adjusting range of translationmm

Ty

±2

Tz

±2

Adjusting range of tilt

θy

±4°

θz

±4°

Weightkg

0.18
