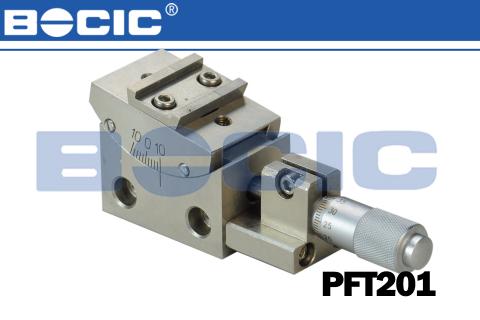

PFT201 fiber positioning system

    1. Provide rotation adjustments around X axis

    2. With a dovetail mount , can be used for fix the mount of optical parts

  • description
  • parameters

PFT201 fiber positioning system



1. Provide rotation adjustments around X axis

2. With a dovetail mount , can be used for fix the mount of optical parts



Model

PFT201

Adjustment range θx

±10°

Axis height（mm）

16

Resolution

6″

Weight（kg）

0.3
