current location：Home>Products>Optics Mounts Series>Post Holders

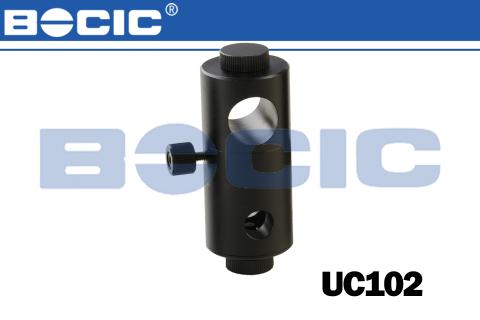

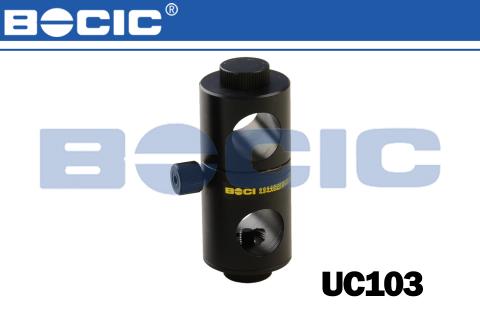

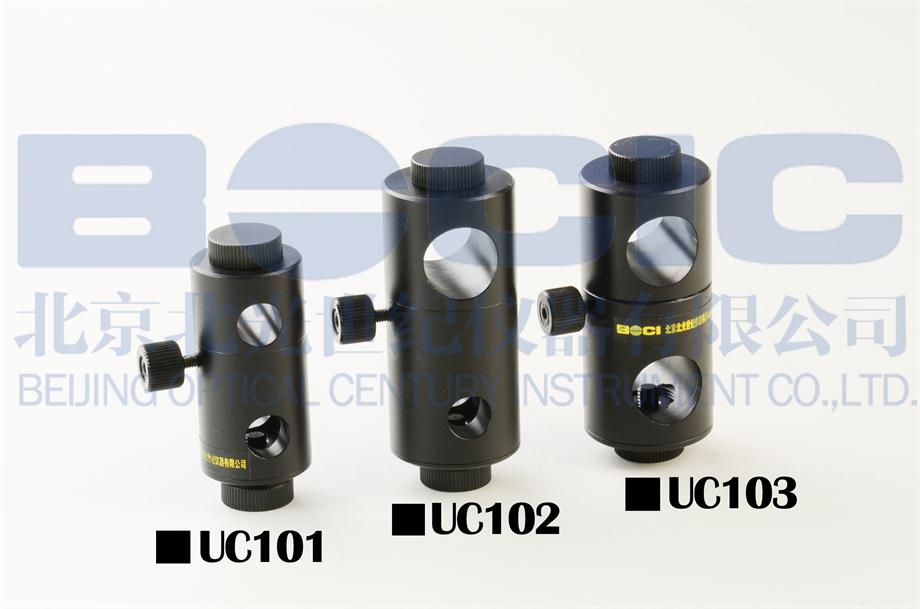

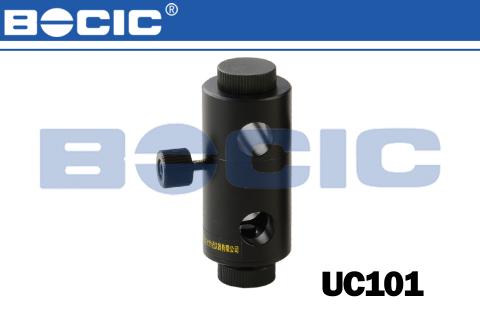

UC100 series universal clamps

    1. Combining many kinds of diameters support posts according to required angle

    2. Two supports can provide 360 degree relatively rotation and can locking

  • description
  • parameters

UC100 series universal clamps




1. Combining many kinds of diameters support posts according to required angle

2. Two supports can provide 360 degree relatively rotation and can locking



Model

UC101

UC102

UC103

A

60

77

77

B

30

36

36

C

Φ12

Φ20

Φ20

D

Φ12

Φ12

Φ20

E

32

44

41

Weight（kg）

0.15

0.2

0.2
