current location：Home>Products>Optics Mounts Series>Laser Mounts

PLM202 precision laser mount

    1. Provides two dimensional adjustment of tilt

    2. It can clamp different diameter of the laser diode or cylinder

    3. Driving by fine thread screw, spring reset

  • description
  • parameters

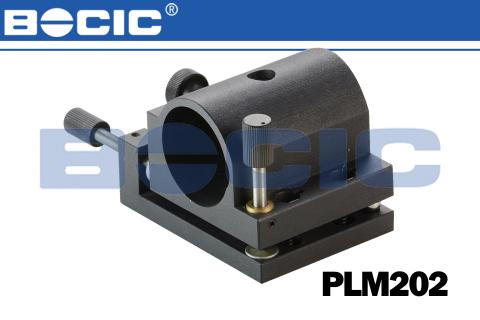

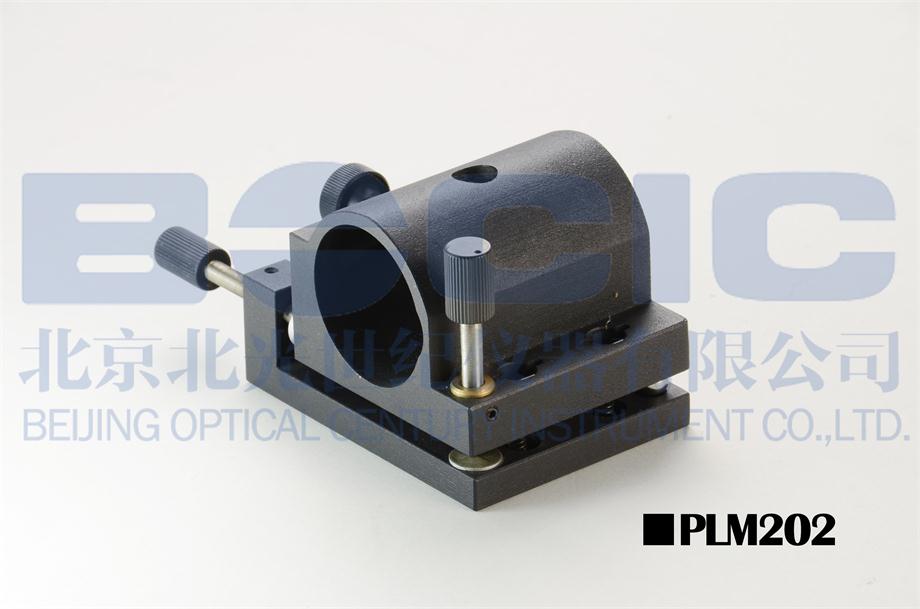

PLM202 precision laser mount



1. Provides two dimensional adjustment of tilt

2. It can clamp different diameter of the laser diode or cylinder

3. Driving by fine thread screw, spring reset

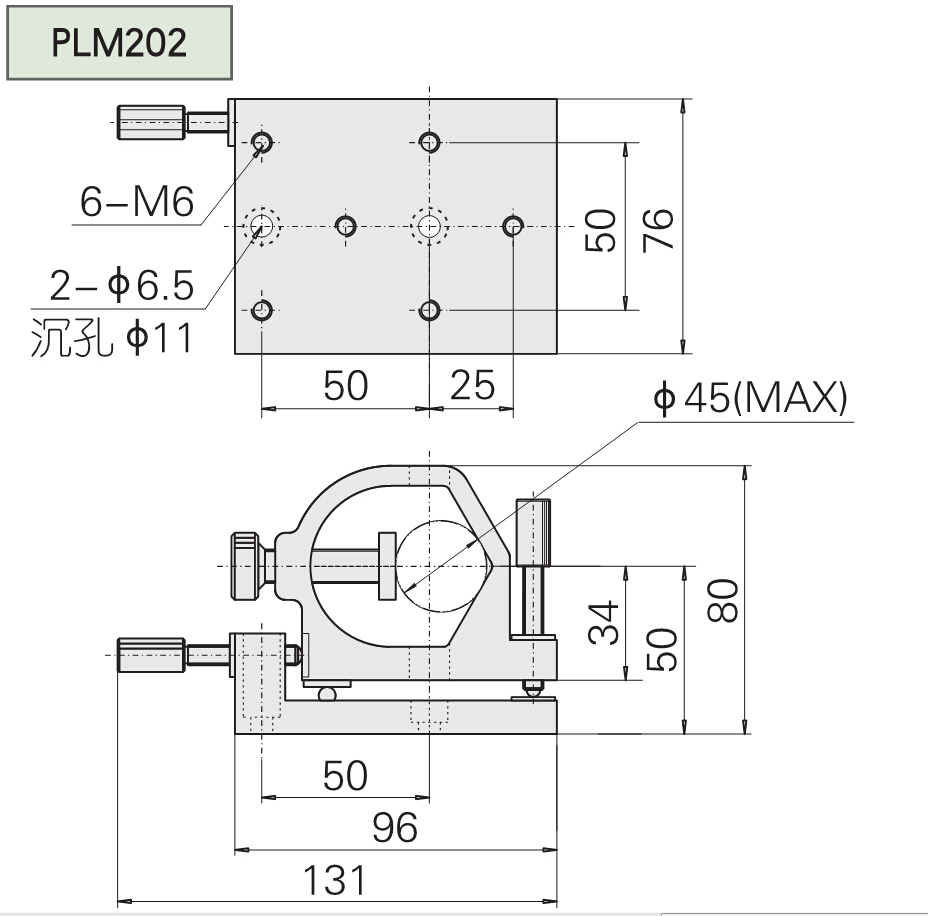

Model

PLM202

Applied diameter（mm）

Φ45（max）

Adjusting range（mm）

θy

±5°

θx

aa±5°

Weight（kg）

0.7
