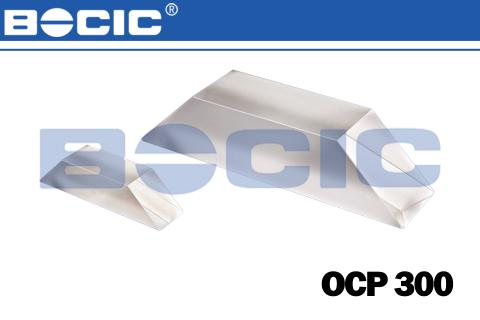

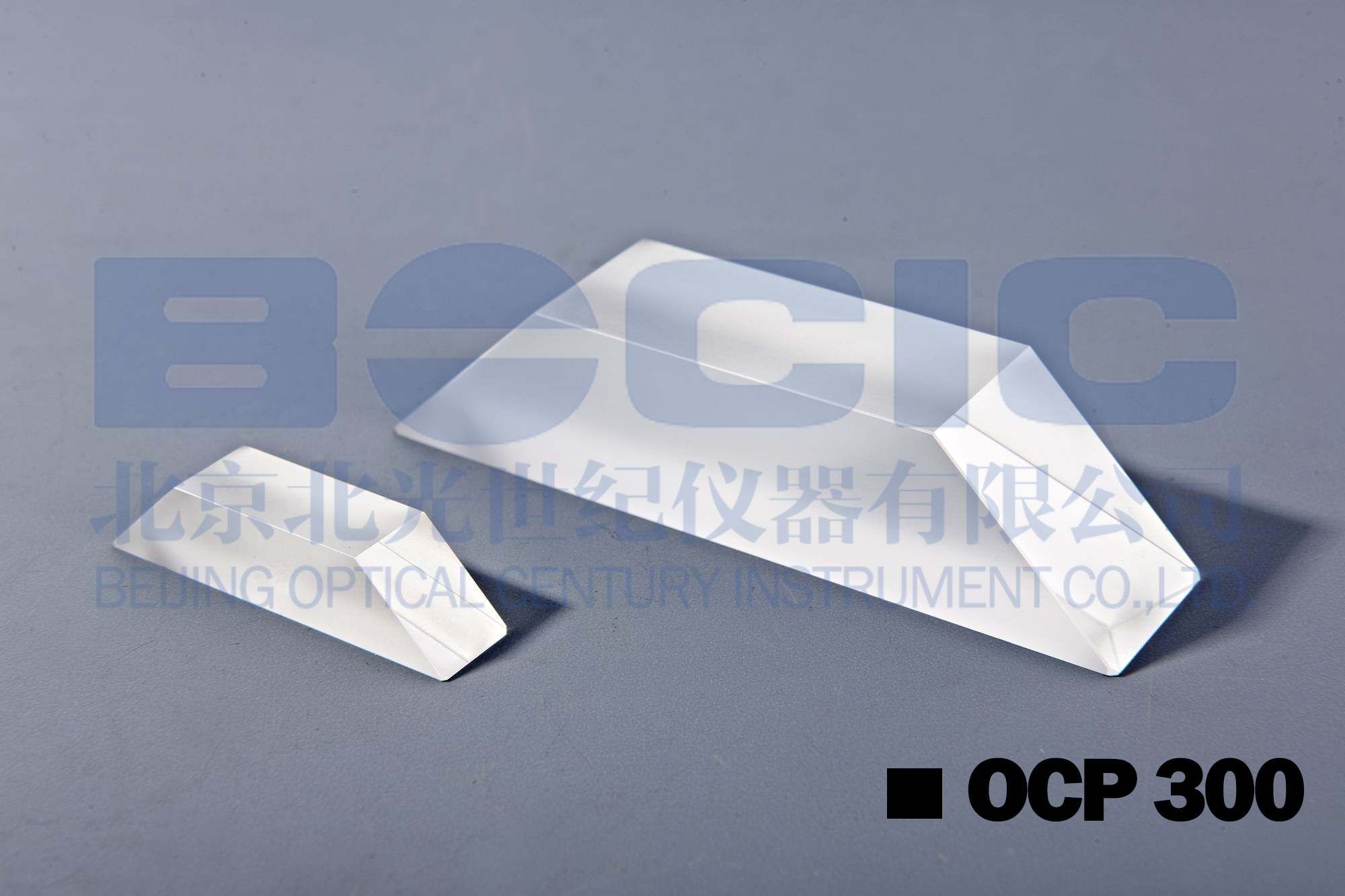

OCP300 series Dove prisms
1. Material: K9 optical glass
2. Size Tolerance: +0.0/-0.2mm
3. Surface Figure: ＜ λ/[email protected]
4. Surface Quality: 3 to 4
- description
- parameters
|

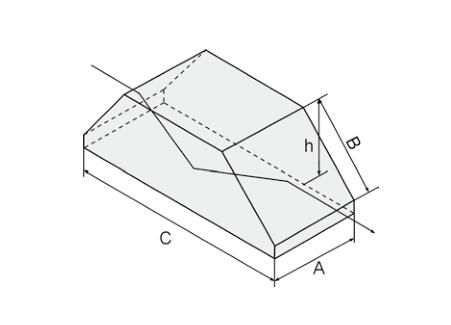

Model |
Name |
A(mm) |
B(mm) |
C(mm) |
|
OCP301 |
Dove prism |
10 |
14.14 |
42.28 |
|
OCP302 |
Dove prism |
20 |
28.28 |
84.56 |
