current location：Home>Products>Motion Control>Linear Actuators

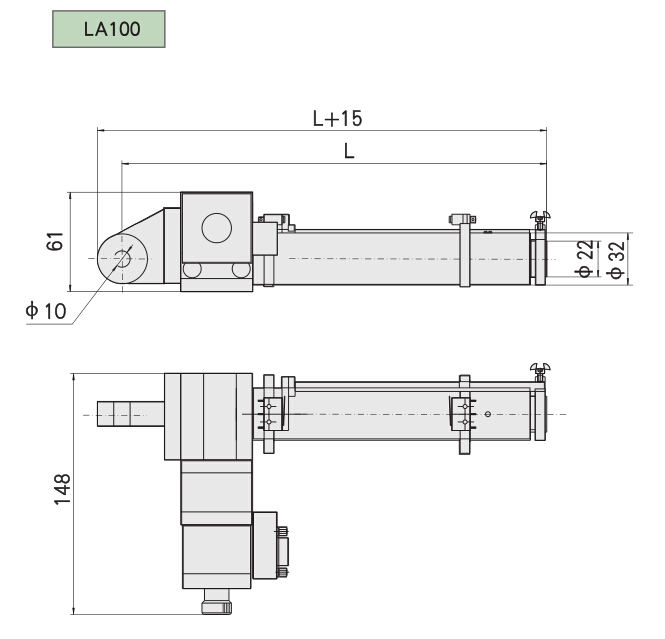

LA100 series linear actuators

    1.The main body is made by of high precision aluminum tube.
    2.Driving by Actuated with high precisionball screw rod, Moving by and stepper motor. controllers.
    3. Small size design andwith high thrust .


  • description
  • parameters

LA100 series linear actuators




1.The main body is made of high precision aluminum tube.

2.Actuated with high precisionball screw rod and stepper motor..

3. Small size with high thrust .


Related Products：

STEPPER MOTOR CONTROLLERS





Model

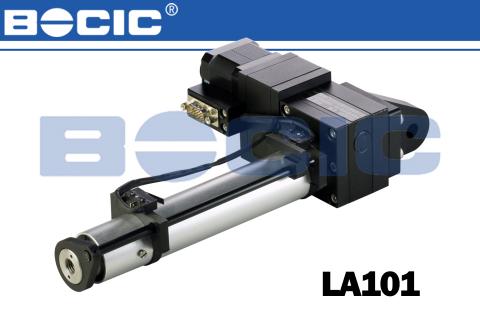

LA101

LA102

Travel（mm）

100

200

Size L (mm)

260

360

Resolution(mm)

0.00005

Maximum speed

0.6

Resetting positioning accuracy (mm)

＜0.005

Stepper motor（1.8°）

42 stepper motor

Thrust (N)

1000

Weight（kg）

1.3

1.5
